Driftwood & Champlain

Driftwood and Champlain Flat Bottom Onground Pools can be ‘dished’ using a gentle slope to achieve additional water depth as follows:

Full Dish – The pool bottom ‘dished’ toward the center of the entire pool width and the center of the entire pool length

Partial Dish – The pool bottom ‘dished’ toward one end of the length of the entire e pool while the other end of the pool remains flat.



Full Dish Option

Driftwood & Champlain Full Dish Option

Full Dish – Maximum Depth 4′-6″

The Full Dish Option gently slopes the pool toward its center in all directions to achieve a maximum depth of 4′-6″ as show above.

Flat Bottom Liner

A Flat Bottom Driftwood or Champlain Liner is recommended for all Full Dish Options.

Partial Dish Option

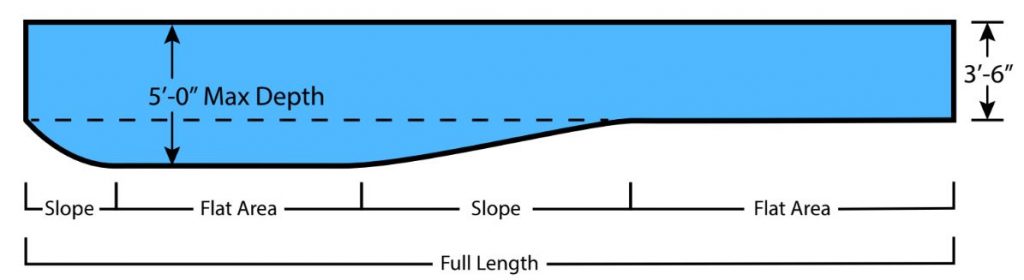

Driftwood & Champlain Onground Pool Partial Dish Option

Partial Dish – Maximum Depth 5′-0″

The Partial Dish Option has an extended Shallow Area for approximately 1/3 to half of the pool length then gently slopes toward one end of the pool through its length to a maximum depth of 5′-0″ as shown above.

Flat Bottom Liner

A Flat Bottom Driftwood or Champlain Liner is recommended for all Partial Dish Options.

Featured Product

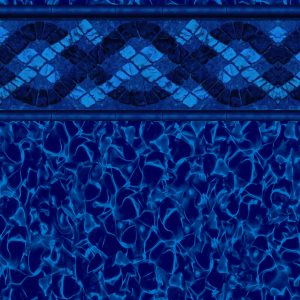

Onground-Augusta HD-27-Mil

AUGUSTA HD – 27 MIL





AUGUSTA HD – 27 MIL

Augusta HD is the ideal liner pattern and mil thickness for a Driftwood or Champlain Onground Pool with a Full Dish to 4′-6″ or a Partial Dish to 5′-0″.  The additional mil thickness of Augusta HD allows for the additional stretch of a Flat Bottom Liner when applied in these two applications.

SHOP NOW

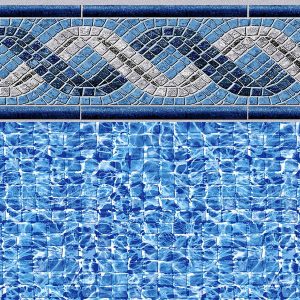

Pool Fits Greystone vinyl pattern

GREYSTONE – 27 MIL





GREYSTONE – 27 MIL

Greystone is another the ideal liner pattern and mil thickness for a Driftwood or Champlain Onground Pool with a Full Dish to 4′-6″ or a Partial Dish to 5′-0″.  The additional mil thickness of Greystone allows for the additional stretch of a Flat Bottom Liner when applied in these two applications.

SHOP NOW
